Name: Jelly Ice Pop Filling Machine for Various Shape bag PreShaped Bag
Brand: LANGHUI
Price: 1 USD

Ask Lasest Price
Brand Name :	LANGHUI
Model Number :	BD1410A
Price :	Negotiable
Delivery Time :	20 days from the date we received your samples and deposit.
Payment Terms :	T/T with 30% deposit and 70% balanced before shipment.
Supply Ability :	60 Per Month

Add to Cart

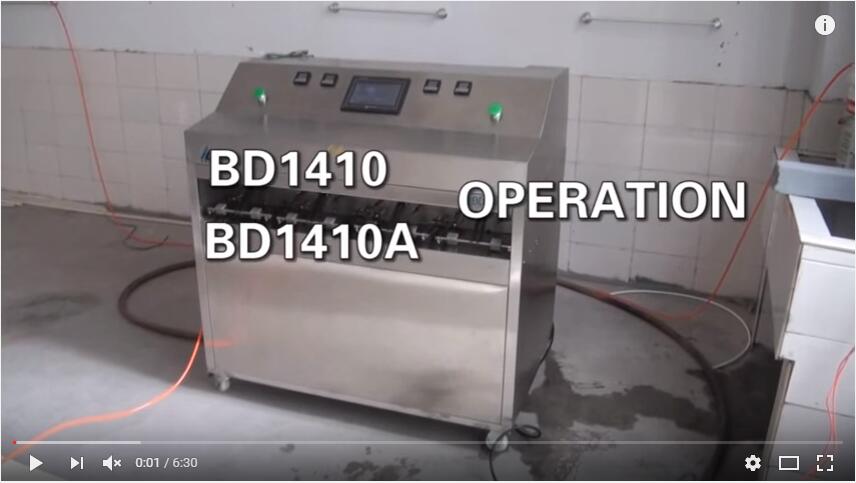

BD1410A 360° ALL VIEW

The stick pouch is a popular international plastic bag. It is also called Expansion Bags | Plastic Bag | Stand Up Pouch | Pre-Shaped Bag | Spout Pouch | Formed Bag | Bottle Shape Pouch | Fruit Shape Pouch | Fruit Shape Bag | Various Shape bag | Sachet | Doypack. It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.
It is widely used in dairy products such as Natural Fruit Juice | Beverage | Liquid | Drinks |Soft Drink | Fruit Jam | Candy | Jelly | Ice Pop | Honey, etc.

It adopts 304 stainless steel, and PLC system control.
Chinese and English man-machine visualization operation interface. It is automatic entire process by PLC control system, such as filling, sealing, dropping bags, etc.
It adopts airless pressurized filling. It can effectively avoid secondary pollution. The filling volume is adjustable.
Unique sealing part design, seal suitable location and firm.It add Teflon material in the sealed parts when you want to seal PE or Nylon pouch.
Comprehensive safety design, with earth-leakage protection.
Each features a modular, easy maintenance.
Unique filling nozzles and anti-drip valve design, no leaking filling and save cost(BD1410A/BD1410B)
Unique sanitary pneumatic forced pump design. It improves the filling volume control accuracy less than ±1%.(BD1410B)

Model	BD1410	BD1410A	BD1410B
Packing rate	2000-3500 bags/hr	2000-3500 bags/hr	2000-3500 bags/hr
Filling nozzles	8	8	8
Workstation	2	2	2
Bag material	PE or Nylon, BOPP laminated LDPE, various shapes pre-shaped bags
Film thickness	＞0.18mm	＞0.18mm	＞0.18mm
Filling volume	≤500ml (Custom)	≤500ml (Custom)	≤500ml (Custom)
Filling accuracy	≤±2%	≤±2%	≤±1%
Power input	220V / 110V 50Hz	220V / 110V 50Hz	220V / 110V 50Hz
Power	0.8-1.6 Kw	0.8-1.6 Kw	0.8-1.6 Kw
Air Pressure	0.6-0.8 Mpa	0.6-0.8 Mpa	0.6-0.8 Mpa
Air Consumption	0.25-0.50 m³/min	0.25-0.50 m³/min	0.75-1.25 m³/min
Net weight	≈80 kg	≈80 kg	≈120 kg
Overall dimension	1100×700×1050mm³(LWH)	1100×700×1050mm³(LWH)	1100×700×1050mm³(LWH)
Gross weight	≈120 kg	≈120 kg	≈160 kg
Packaging dimension	1300×850×1250mm³(LWH)	1300×850×1250mm³(LWH)	1300×850×1250mm³(LWH)

Jelly | Ice Pop Filling Machine for Various Shape bag | Pre-Shaped Bag
